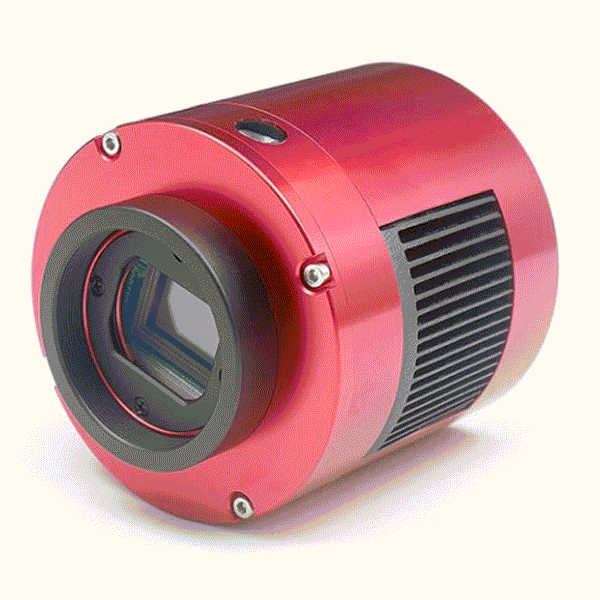

ZWO ASI1600MM PRO Cooled Mono Astronomy Camera

Description

The ZWO ASI1600MM PRO Cooled Mono Astronomy Camera is one of the most popular cameras from ZWO. It has gained a reputation as a fantastic camera if you want to get serious about your astrophotography.

• 4/3” format with 3.8 um pixel size– flexible pixel size for many types of telescopes.
• 12-bit ADC – giving high dynamic range of 12.5 stops.
• A solid 20ke- full well capacity– helping to reduce the issue of, for example, saturated stars.
• 16-megapixel sensor with 4656*3520 pixels– plenty of detail can be captured in high resolution.
• Read noise as low as 1.2 e-.

DDR Memory Buffer

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.
ASI1600MM Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

Astrophotography Performance

ASI1600 Pro offers very good performance for astrophotography. Low read noise, low dark current, high dynamic range.

ASI1600 has a build-in 12bit ADC but can provide 12.5 stops dynamic range which is even better than KAF8300 due to its super low read noise.

Reliable Mechanical Structures

There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.

Even when used in higher humidity environments, ASI1600 Pro will still work fine without dew problems.

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provides 5Gb bandwidth to make it possible for ASI1600 Pro to run at 14.7 fps (12bit, normal mode) or 23 fps (10bit, high speed mode) at full resolution (16Mega).

USB 2.0 HUB: Can connect with various accessories, including a filter wheel, guide camera or electronic focuser, allowing you to manage your cables better. There are two short 0.5m USB2.0 cables included with the ASI1600 Pro. The hub is powered by the external power supply if you connect one.

Cooling System

Thanks to the two-stage TEC cooling, ASI1600MM Pro can lower the CMOS sensor temperature to more than 40-45 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

Please note that the camera needs to be connected to an external 11-15v power supply to implement the cooling function. We recommend you use 12V@3A DC adapter (5.5*2.1mm, center pole positive) or lithium battery with 11-15V to power the camera.

Specifications

Sensor: 4/3″ CMOS
Diagonal: 22.2mm
Resolution: 16Mega Pixels 4656×3520
Pixel Size: 3.8µm
Max FPS at full resolution :23FPS
Shutter: Rolling shutter
Exposure Range: 32µs-2000s
Read Noise: 1.2-3.6e
QE peak: 60%
Full well: 20ke
ADC:12bit
DDRIII Buffer: 256MB
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
Adaptor: 2″ / 1.25″ / M42X0.75
Protect window:AR window（D32-2-AR）
Dimensions: 78mm Diameter
Weight: 410g
Back Focus Distance: 6.5mm
Cooling: Regulated Two Stage TEC
Delta T: 40-45 below ambient
Cooler Power consumption: 12V at 2A Max
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%

Supported resolution

12Bit ADC

4656×3520 14.7fps
3840×2160 23.1fps
1920×1680 32.9fps
1280×960 47.1fps
640×480 80.4fps
320×240 124.4fps

10Bit ADC

4656×3520 23fps
3840×2160 36.2fps
1920×1680 57.7fps
1280×960 73.6fps
640×480 125.7fps
320×240 192.4fps

In The Box

Camera Body
Nose Piece Cover
M42-M48 Adapter
T21-1.25″ Adapter
1.25″ Nose Piece
T2-M48 Extender (16.5mm)
T2 Extender (21mm)
4 Spacers
USB2.0 Cable (0.5m x2)
USB3.0 Cavle (3m)
Camera bag
Quick Start Guide
